Assembly Required: no
Brand Name: NONE
Certification: NONE
Choice: yes
High-concerned chemical: none
Model Number: Adapter Card
Package: Yes
Type: Cable Adapter
semi_Choice: yes
 Please note before purchasing
The motherboard must support
The motherboard supports PCI-E split function and can set PCI-E X4X4X4 or 4X4 mode;
The motherboard supports PCI-E RAID function;
ASUS motherboard supports the function of HyperM.2X16 expansion card;
Different motherboards have different numbers of PCI-E split lanes. Some motherboards’ PCI-E RAID is X8+X4+X4. This kind of motherboard’s 4-bit M.2 card can only support 3 M.2 SSDs or devices, and 2-bit M. 2 cards can only support 1 M.2 SSD or device. If you want to use this product normally, please choose the motherboard correctly;
Many motherboards share PCI-E channels. Make sure the motherboard can support the PCI-E split function, but it cannot recognize so many M.2 SSDs or devices. Please remove other PCI-E devices or replace the slots. Such as graphics cards, expansion cards, onboard NVME SSD, etc.
Please refer to the following link for ASUS motherboards that support PCI-E splitting
https://www.asus.com/tw/support/FAQ/1037507
Please refer to the following link for ASRock motherboards that support PCI-E splitting.
https://www.asrock.com/mb/spec/product.cn.asp?Model=ULTRA%20QUAD%20M.2%20CARD#SupportList

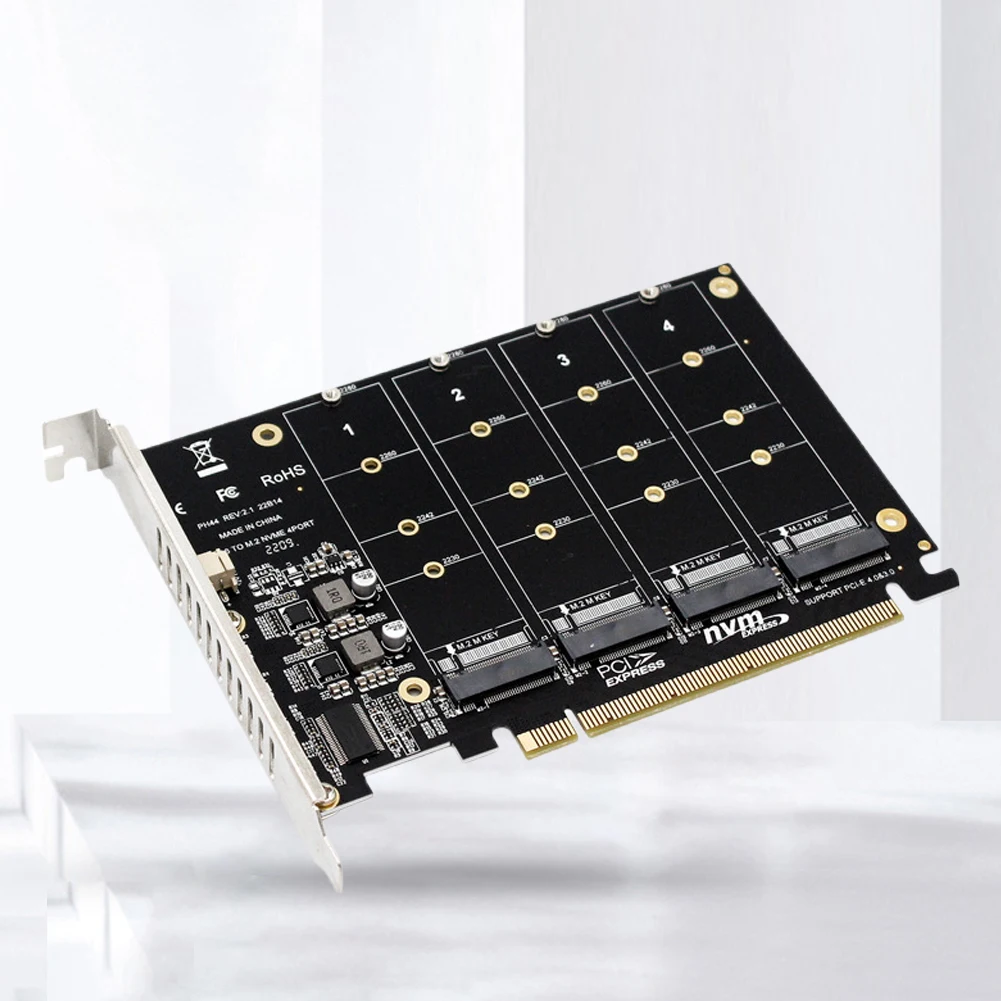

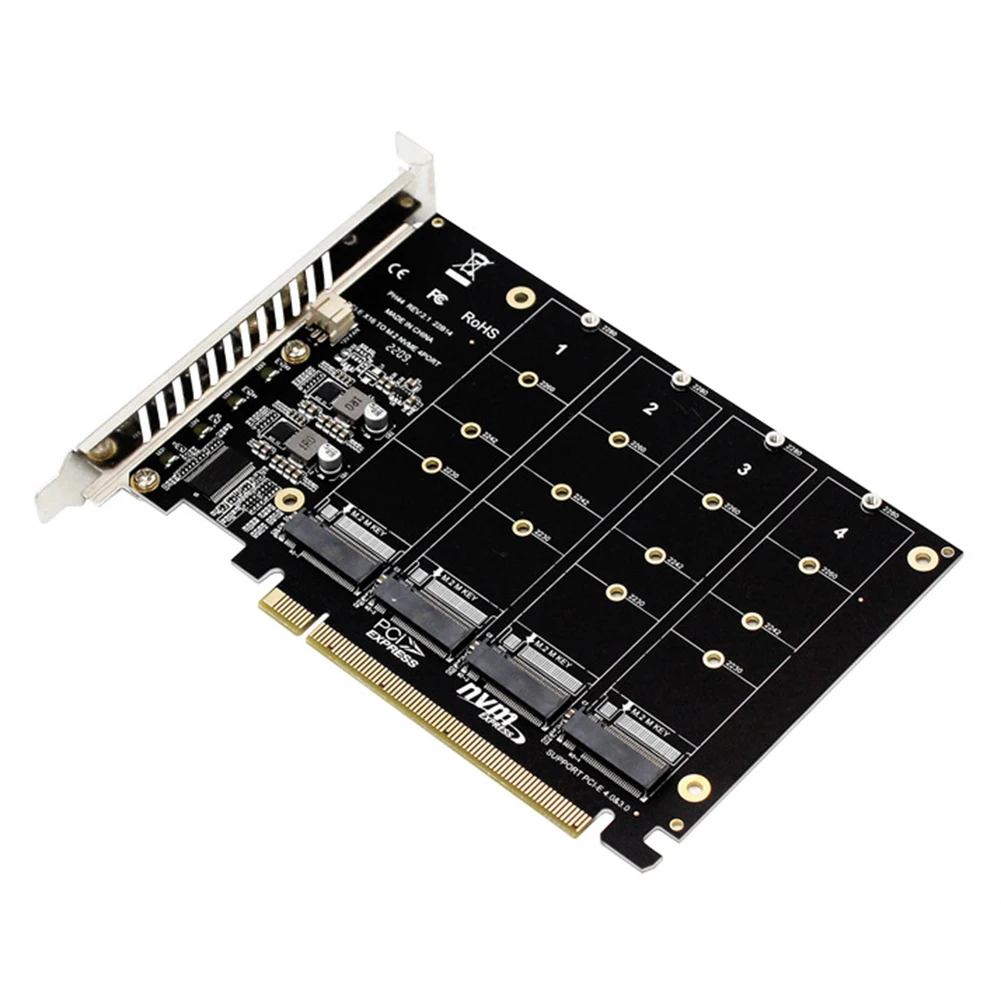

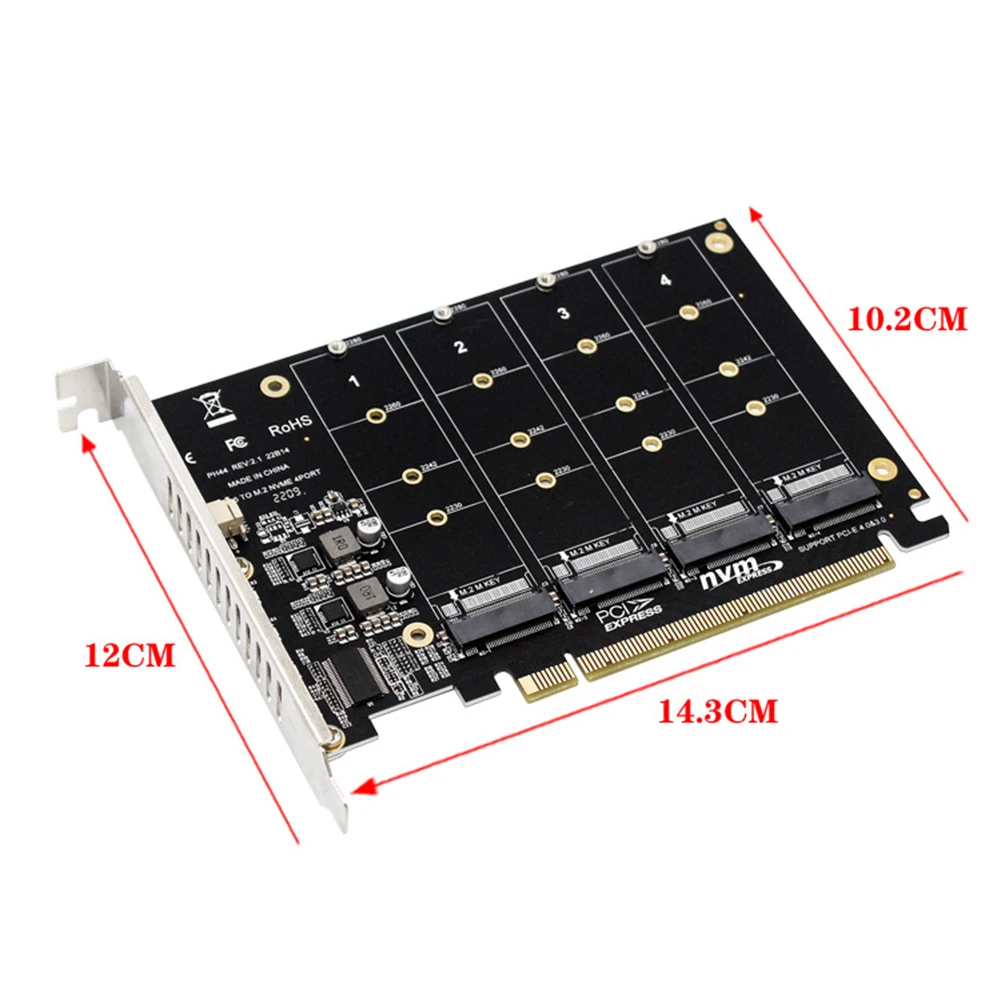

4 Port M.2 NVME SSD To PCIE X16 Adapter Converter Card PCIE Split/PCIE RAID Host Controller Expansion Card Support 2230/2242/2260/2280 LED Indicator Support M.2 PCI-E SSD/M.2 Device NVME Protocol

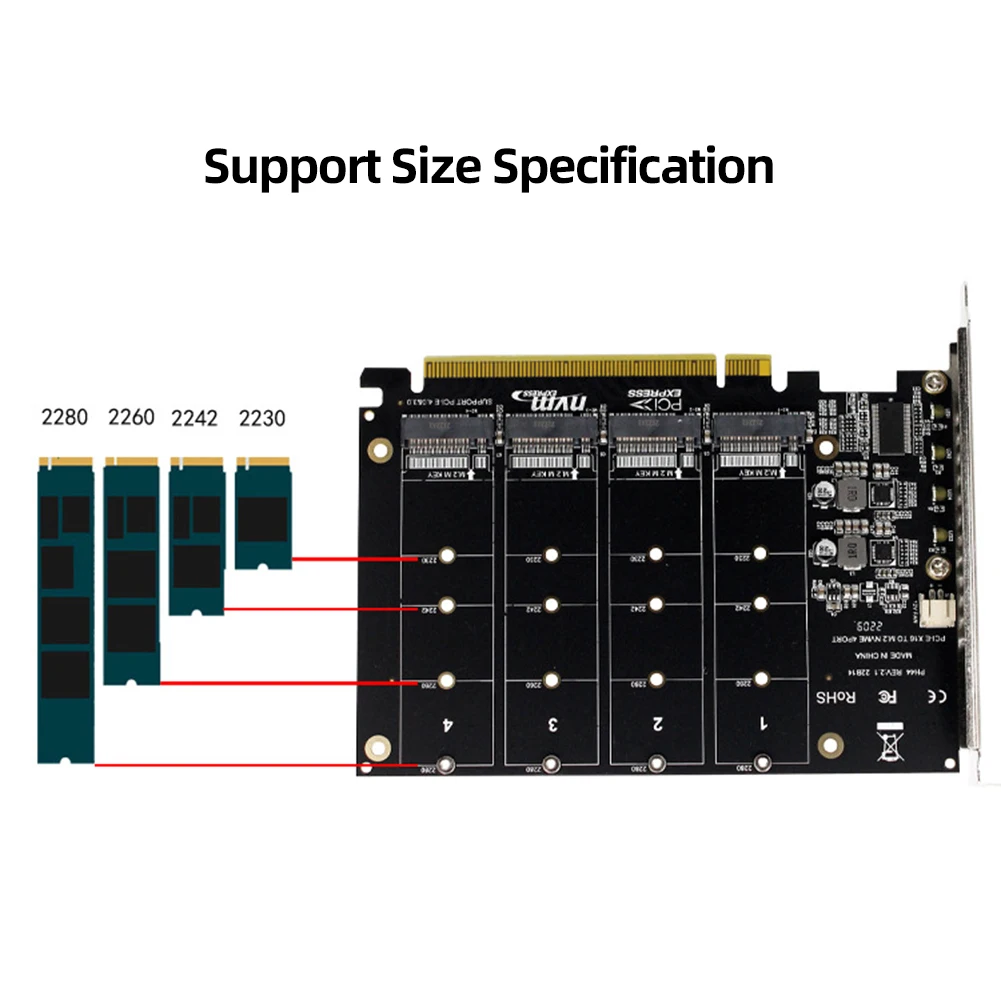

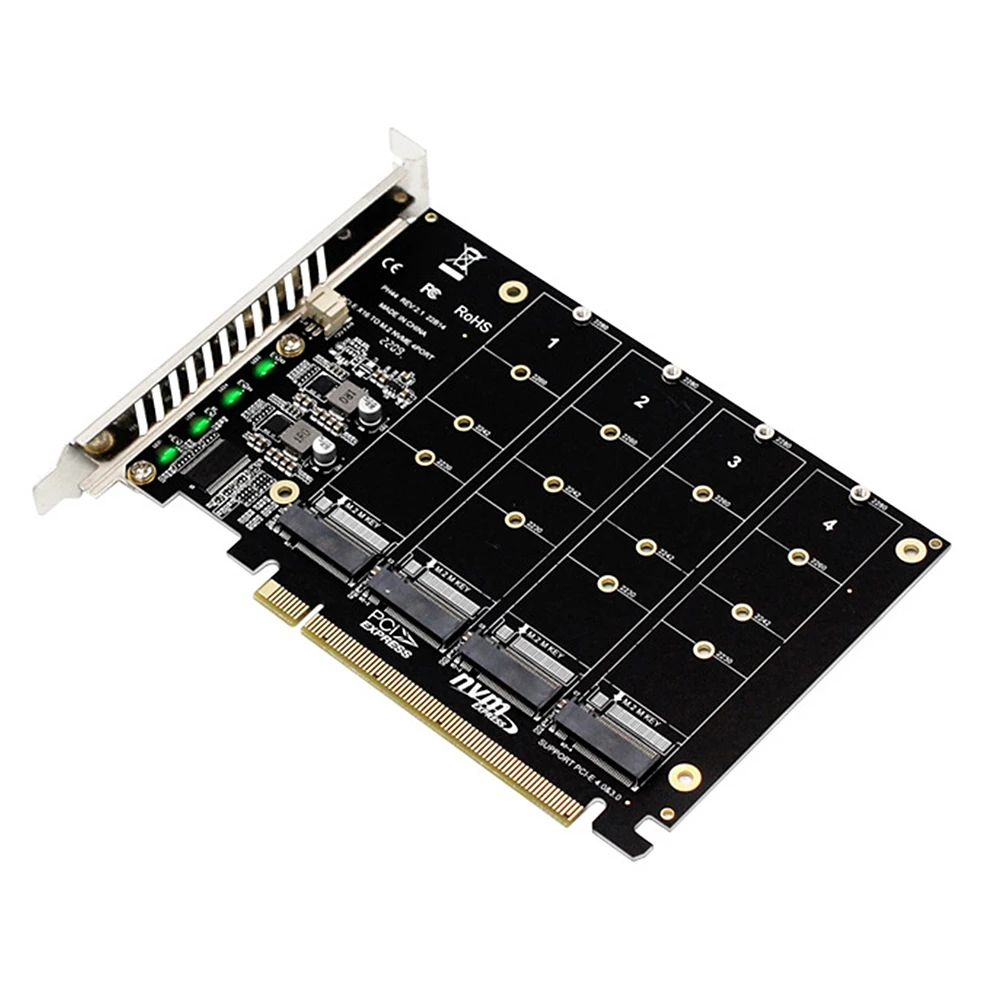

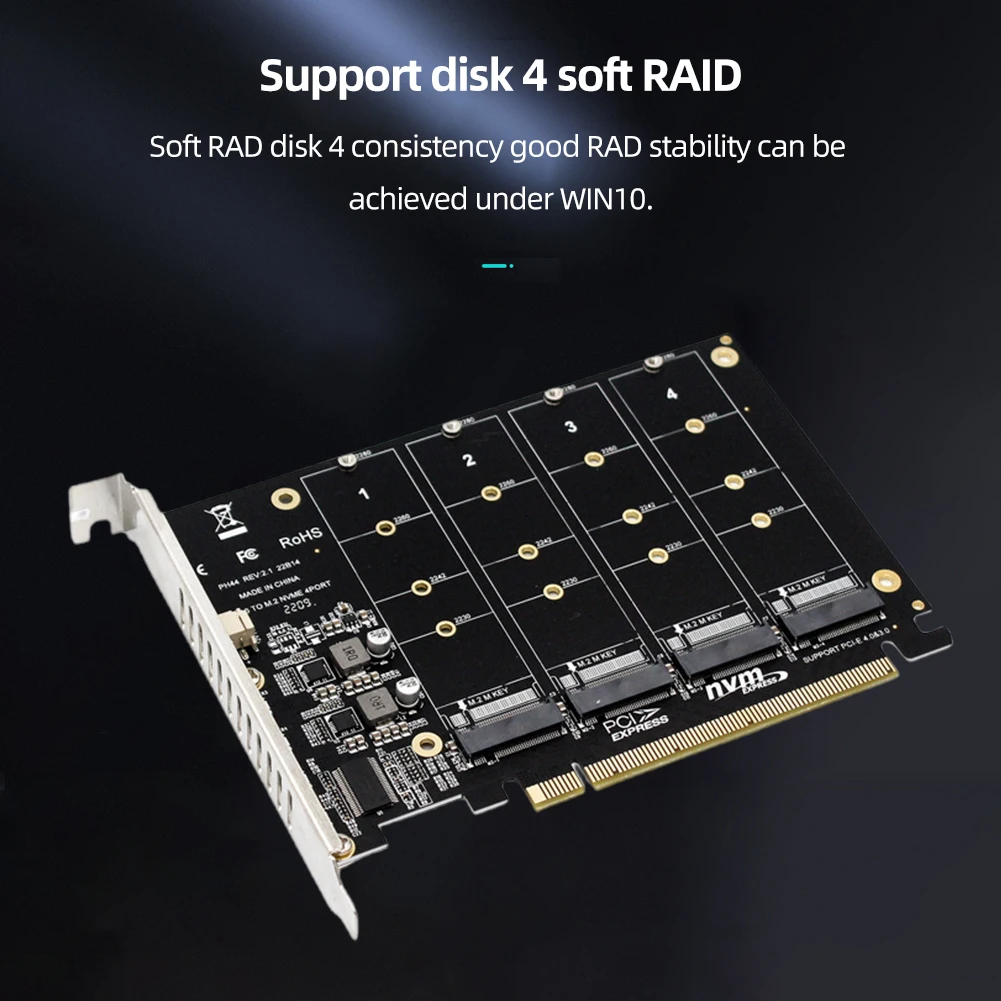

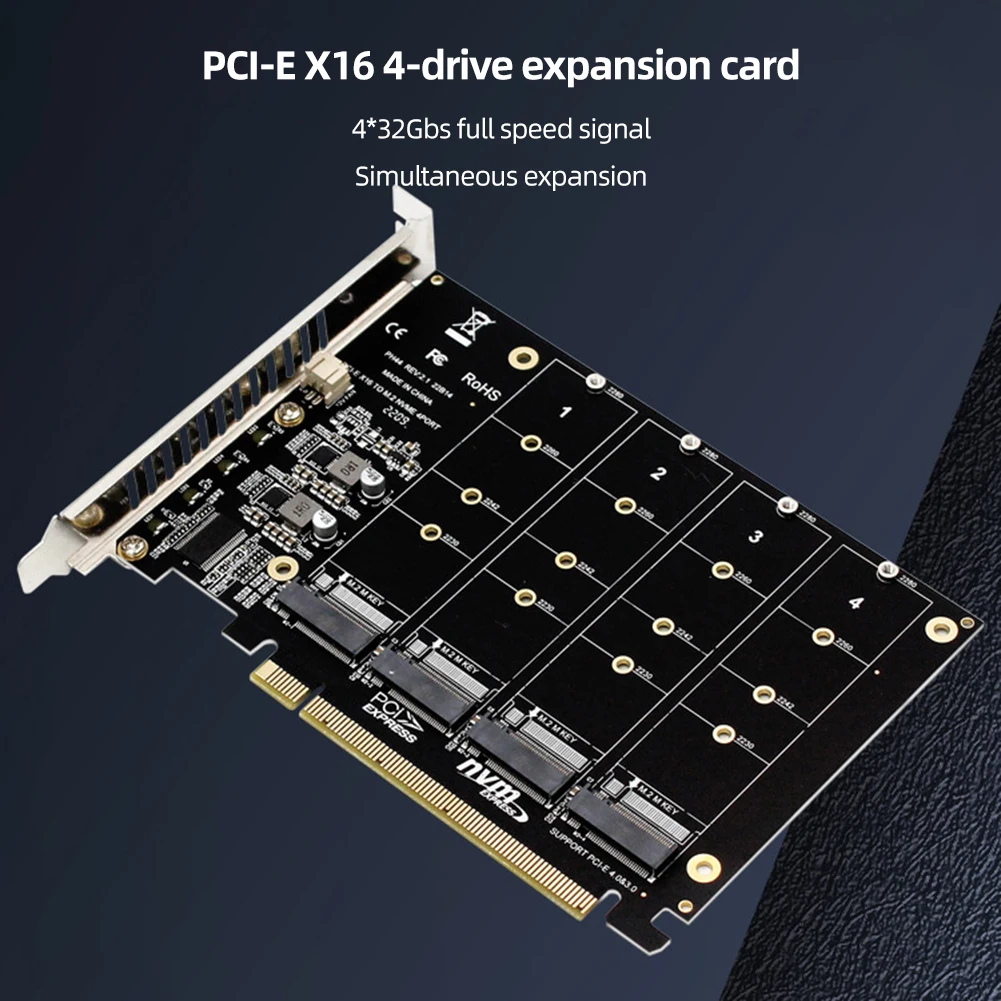

Feature: 1. High-Speed Data Transfer: This hard drive converter has four expansion cards that can simultaneously expand 4 x 32Gbit/s full-speed signals with high-performance DC power supply chips. It ensures stable operation of M2.NVME SSD and supports various sizes including 2230, 2242, 2260, and 2280. 2. Sturdy Construction: The reader expansion card is built with quality materials and features a stable PCIE X16 interface, ensuring protection for important data. It’s compatible with multiple mainstream operating systems and requires no driver installation, making it easy to use. 3. PCIe Splitting and RAID Support: The motherboard supports PCIe splitting or PCIe RAID functionality, and the hard drive supports M.2 NVME SSD/M.2 PCIE devices, providing smooth RAID 4-disk support, Windows 10 fluent RAID, 4 disk consistency, and stable RAID performance. 4. LED Indicators: The adapter converter card comes with four LED indicators, one corresponding to each hard drive, which provides an easy and convenient way to access information about the status of your hard drives. The SSD read/write LED may flicker before connecting SSD to LED. 5. Stable and Reliable: With high-speed data transfer, sturdy construction, PCIe splitting/RAID support, LED indicators, and reliable performance, this host controller expansion card is an ideal choice for anyone looking for a reliable and efficient tool for expanding their storage capacity or building a RAID system. Specification: Note:  1x Hard Drive Converter
|
| Default Title | Default Title |
|---|
